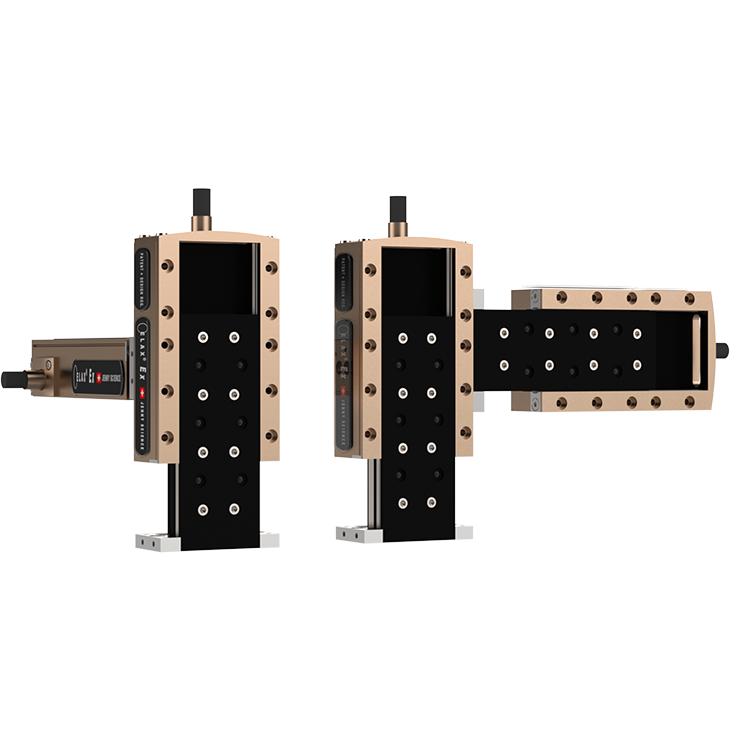

Y-Z Pick and place

ELAX® electric slides
Perfect modular construction system – an essential key factor when the ELAX® electric slides with direct drive were developed. No matter if held flat, upright, as cross table or as linear cantilever, the ELAX® electric slides can be directly screwed together by dowel bushing without the need of adapter plates. The hole matrix has always a grid of 20 x 50 mm (0.79" x 1.97").

Model Screws and dowel bushings Art. No. Pick and Place
Ex F20

4 x dowel bushings Ø6 mm
4 x hexagon socket screws, M3 x 30

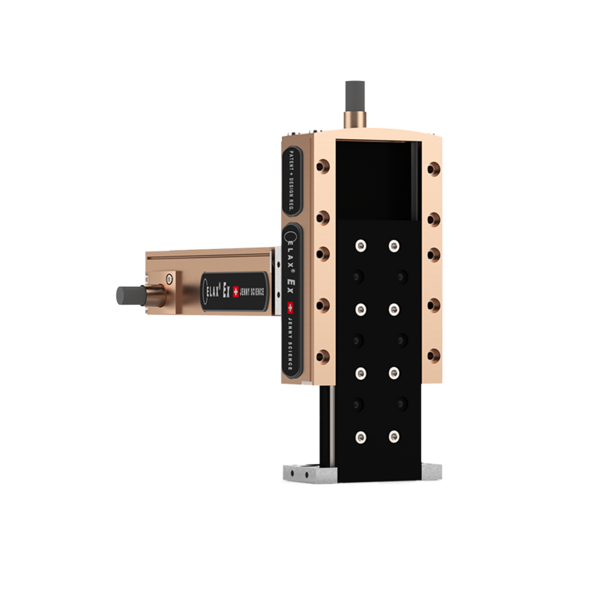

 136.10.00 flat
Ex F20

2 x dowel bushings Ø7 mm
2 x torx with low head,
M4 x 8

 136.10.01

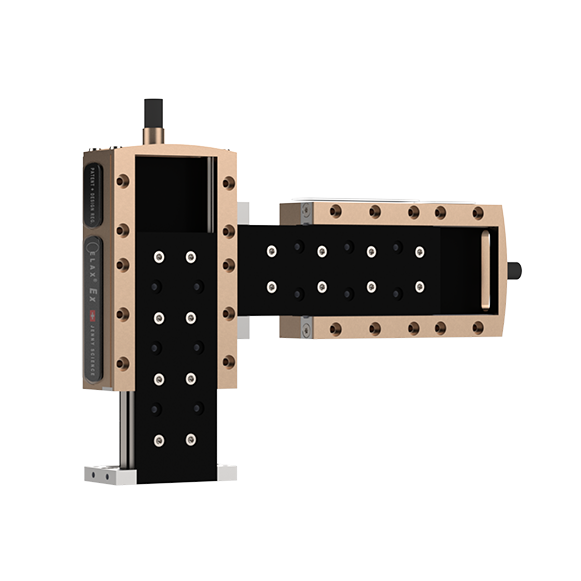

upright

Y-Z-R Pick and Place
ROTAX® rotary motor axis

Model Screws and dowel bushings Art. No. Pick and Place
Rxvp 28-6T0.04

2 x dowel bushings Ø7mm
2 x torx with low head,
M4 x 8

 136.10.01 upright
