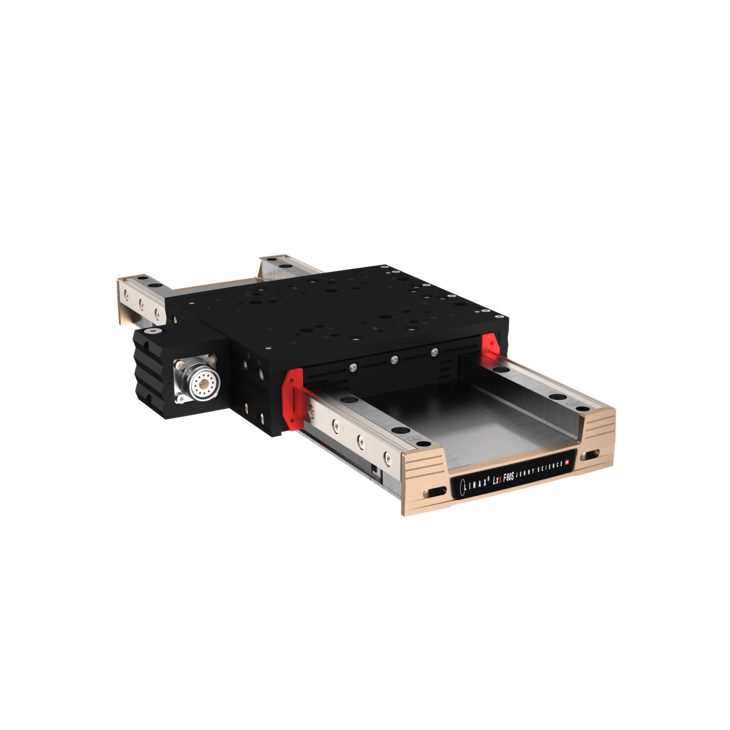

Linax® Lxs F60S linear motor STAGE
Lxs = Shuttle F60S
The LINAX® Lxs was designed for longer travel distances. In the new, revised version, all collected experiences have been incorporated, making the F60S even more powerful.
USPs:
- Single-cable solution - easy installation and reduces wiring effort.
- Absolute measuring system - no referencing required.
- Larger and widely spaced guides - for maximum stability, higher moment absorption, and load capacity.
- Compact height - only 38mm thanks to the "recessed" linear motor.
| LINAX® |
Force Fn/Fp [N] (Ibf) |
Weight Carriage [g] (Ibs) | Position Accuracy (µm) | ||
| Lxs F60S | 60/180 (13.48/40.46) | 1'000 (2.20) | optical 0.1 +/- 0.5 |
optical 1 +/- 1.5 |
magnetic 1 +/- 2 |

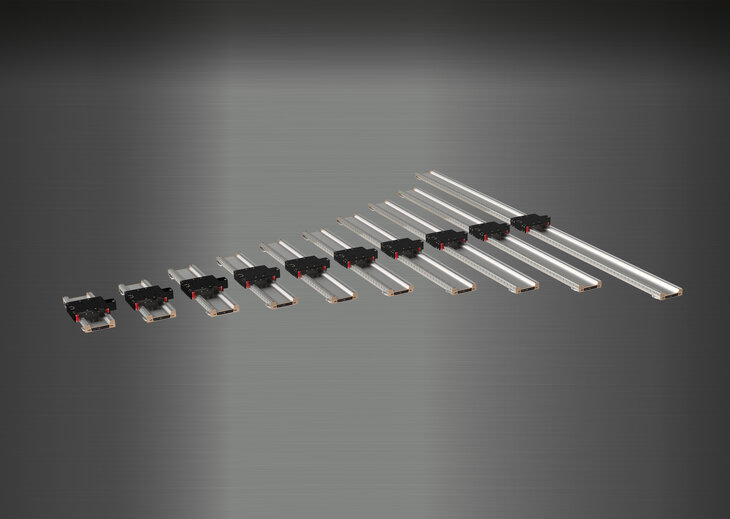

| LINAX® | Stroke [mm] (in) | L Install [mm] (in) | Weight total [g] (Ibs) | Art. No. optical measuring 0.1 μm | Art. No. optical measuring 1 μm | Art. No. magnetic measuring 1 μm |
| Lxs 160F60S | 160 (6.29) | 290 (7.48) | 2'600 (5.73) | 115.42.06 | 115.38.06 | 115.37.06 |
| Lxs 200F60S | 200 (7.87) | 330 (12.99) | 2'800 (6.17) | 115.42.08 | 115.38.08 | 115.37.08 |
| Lxs 320F60S | 320 (12.59) | 450 (17.71) | 3'400 (7.49) | 115.42.14 | 115.34.14 | 115.37.14 |
| Lxs 400F60S | 400 (15.74) | 530 (20.68) | 3'900 (8.59) | 115.42.18 | 115.38.18 | 115.37.18 |
| Lxs 520F60S | 520 (20.47) | 650 (25.59) | 4'500 (9.92) | 115.42.24 | 115.38.24 | 115.37.24 |
| Lxs 600F60S | 600 (23.62) | 730 (28.74) | 5'000 (11.02) | 115.42.28 | 115.38.28 | 115.37.28 |
| Lxs 800F60S | 800 (31.49) | 930 (36.61) | 6'100 (13.22) | 115.42.38 | 115.38.38 | 115.37.38 |
| Lxs 1'000F60S | 1'000 (39.37) | 1'130 (44.48) | 7'200 (15.87) | 115.42.48 | 115.38.48 | 115.37.48 |
| Lxs 1'200F60S | 1'200 (47.24) | 1'330 (52.36) | 1'000/8'400 (18.51) | 115.42.58 | 115.38.58 | 115.37.58 |
| Lxs 1'600F60S1) | 1'600 (62.99) | 1'730 (68.11) | 10'800 (23.80) | 115.42.78 | 115.38.78 | 115.37.78 |
1) only available with magnetic measuring system
