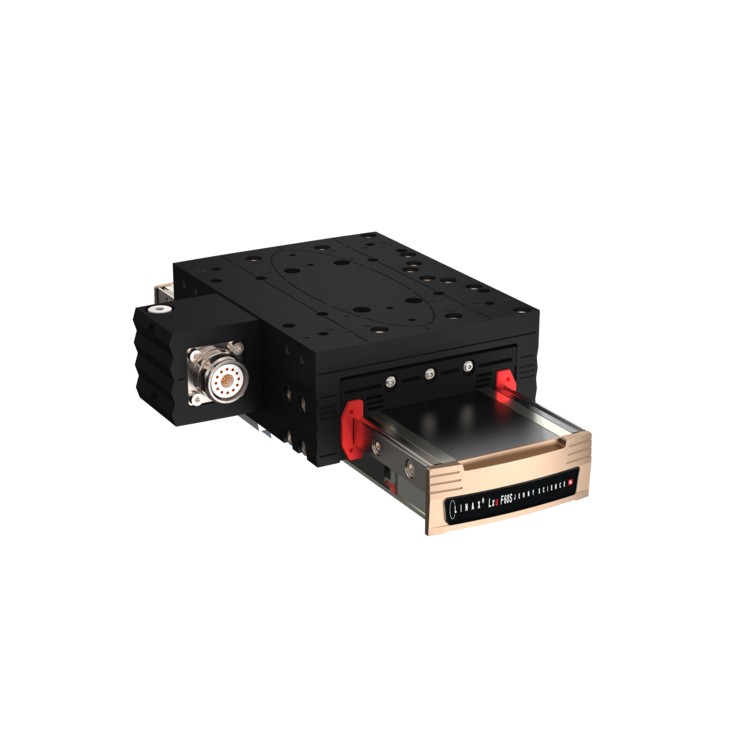

Linax® lxu F60S linear motor Axis
Lxu = Universal F60S
The new version of the LINAX® Lxu F60S is designed as a versatile linear motor solution, now featuring an efficient single-cable solution and an absolute measuring system.
USPs:
- Single-cable solution - allows for easy installation and reduced wiring effort.
- Absolute measuring system - no reference required.
- Three mounting options - can be mounted in the carriage, base plate, or end plate with the Lxu flange.
- Versatile configurations - four through-holes in the carriage enable back-to-back mounting of two LINAX® Lxu carriages, ideal for X-Z handling.
- Integrated weight compensation - available for vertical arrangements.
| LINAX® |
Force Fn/Fp [N] (lbf) |
Weight Carriage [g] (Ibs) | Position Accuracy (µm) | ||
| Lxu F60S | 60/180 (13.48/40.46) | 950 (2.09) | optical 0.1 +/- 0.5 |
optical 1 +/- 1.5 |
magnetic 1 |

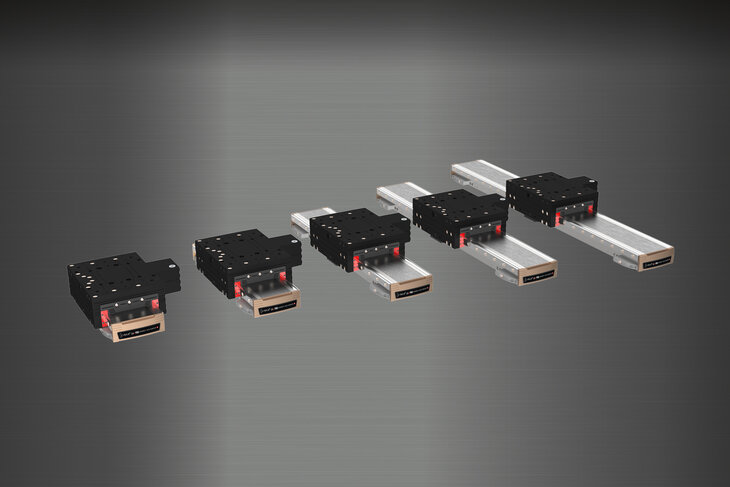

| LINAX® | Stroke [mm] (in) | L Install [mm] (in) | Weight total (+Geko) [g] (Ibs) | Art. No. optical measuring 0.1 μm | Art. No. optical measuring 1 μm | Art. No. magnetic measuring 1 μm |
| Lxu 40F60S1) | 40 (1.57) |
170 (6.69) |
1'700 (+350) (3.74 (+0.77)) |
115.44.00 | 115.40.00 | 115.39.00 |
| Lxu 80F60S1) | 80 (3.14) |
210 (8.26) |
1'900 (+350) (4.18 (+0.77)) |
115.44.02 | 115.40.02 | 115.39.02 |
| Lxu 160F60S1) | 160 (6.29) |
290 (11.41) |
2'200 (+590) (4.85 (+1.30)) |
115.44.06 | 115.40.06 | 115.39.06 |
| Lxu 240F60S | 240 (9.44) |
370 (14.56) |
2'600 (+820) (5.73 (+1.81)) |
115.44.10 | 115.40.10 | 115.39.10 |
| Lxu 320F60S | 320 (12.59) | 450 (17.71) |
2'900 (6.39) |
115.44.16 | 115.40.16 | 115.39.16 |
1) available with weight compensation up to 6kg (13.22 lbs)
Download files LINAX® Lxu F60S linear motor
| Datasheet_LINAX_F60S.pdf (PDF) |
| CAD-FILES_STEP_LINAX®_Lxu F60S.zip – Login |
| ACCESSORIES_CAD-FILES_STEP_LINAX®_Lxu.zip – Login |
