x-y cross table

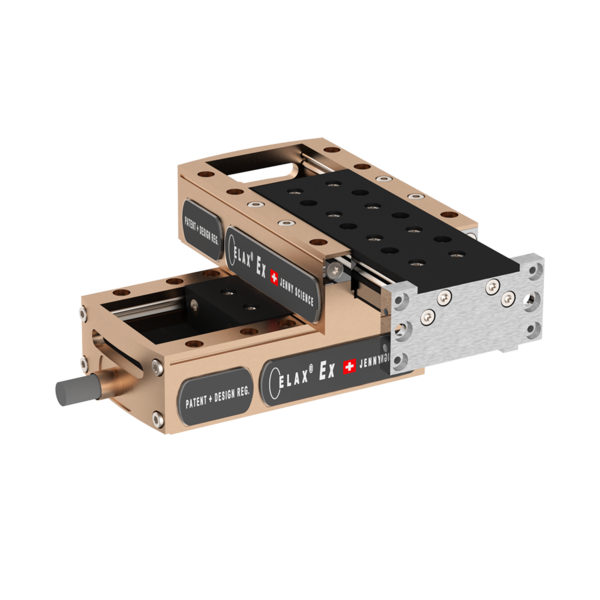

ELAX® electric slides
Modular system in perfection – an essential key factor when the ELAX® electric slides with direct drive were developed. No matter if held flat, upright, as cross table or as cantilever, the ELAX® electric slides can be directly screwed together by dowel bushing without the need of adapter plates. The hole matrix has always a grid of 20 x 50 mm (0.79" x 1.97").
| Model | Screws and dowel bushings | Art. No. | Cross table fitting |
|---|---|---|---|
| Ex F20 |
4 x dowel bushings Ø 6 mm, |
136.10.00 |  |

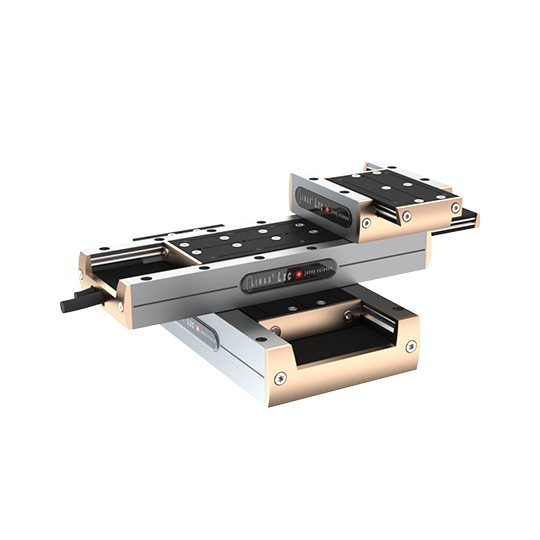

LINAX® Lxc linear motors
The various LINAX® linear motor types can be directly mounted to each other without the need of adapter plates. For cross table combinations there are multiple grid patterns possible.
For the choice of the according screws, the upper mounted linear motor is relevant (For example if a LINAX® Lxc F10 is mounted on the top of a LINAX® Lxc F40, use fixing screw set for the Lxc F10).
| Model | Screws and centering pins | Art. No. | Cross table fitting |
|---|---|---|---|
| Lxc F08 / Lxc F10 |
4 x hexagon socket screws M3 x 27, low head 2 x centering pin Ø 2,5 x 6, stainless |
135.10.00 |  |
| Lxc 40 |
4 x hexagon socket screws M3 |
135.20.00 |

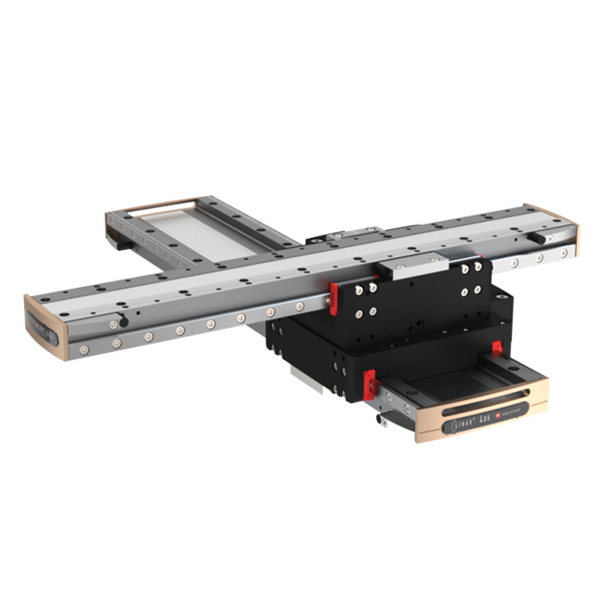

LINAX® Lxu linear motors
The four long holes through the carriage slider allow direct screw connections for the back to back mounting of two LINAX® Lxu slides, which is ideal for X-Z handling.
| Model | Screws and centering pins | Art. No. | Cross table fitting |
|---|---|---|---|
| Lxu F60 |
4 x hexagon socket screws M4 x 40, 4 x |
135.11.10 |  |

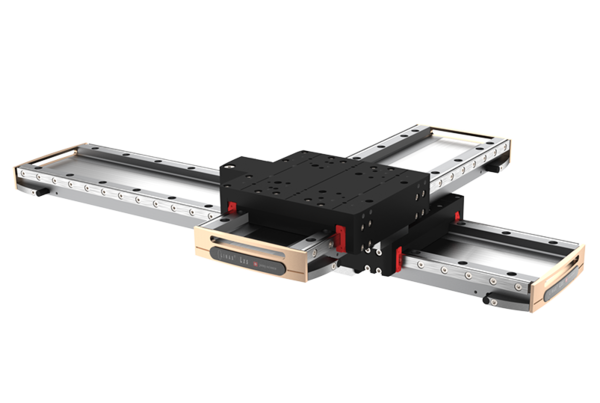

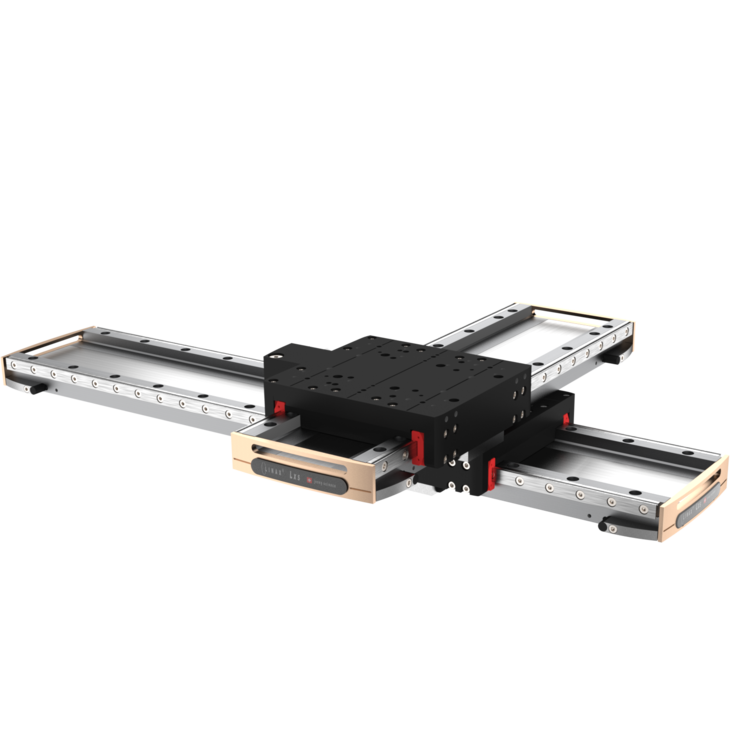

LINAX® Lxs linear motors
The various LINAX® linear motor types can be directly mounted to each other without the need of adapter plates. For cross table combinations there are multiple grid patterns possible.
For the choice of the according screws, the upper mounted linear motor is relevant
| Model | Screws and centering pins | Art. No. | Cross table fitting |
|---|---|---|---|
| Lxs F60 |
6 x hexagon socket screws M4 x 25, |
135.11.20 |  |
